The ControlAir Type 100M Motorized Air Pressure Regulator is
designed to provide precise pneumatic control by use of an
electrical signal. This highly accurate device is well suited for
pneumatic control of a system from a remote location. Utilizing
two tandem synchronous AC Motors, each having it's own set
of leads, but operating through a single output shaft, direction of
rotation is dependent of which set of leads power is applied to.

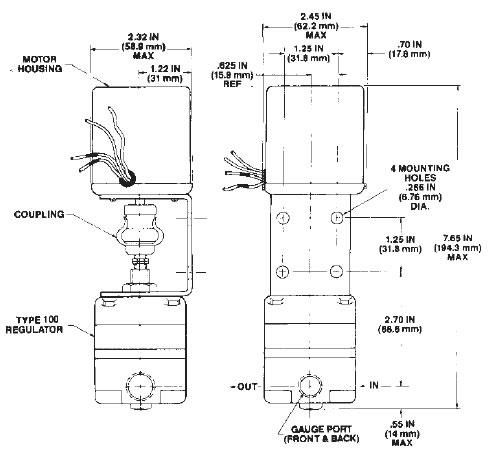

The motor is coupled to ControlAir's Type-100, which is a high
precision, multi-stage air pressure regulator with low power
requirements.

•Maintains Setting
Maintains pressure setting in the event of a power failure
•Low Power Consumption
•No Pre-regulation of Supply Pressure
Necessary
•Mountable at Any Angle
•Adjustable Mechanical Stop Limits Maximum
Output Pressure
•Flexible Range Options

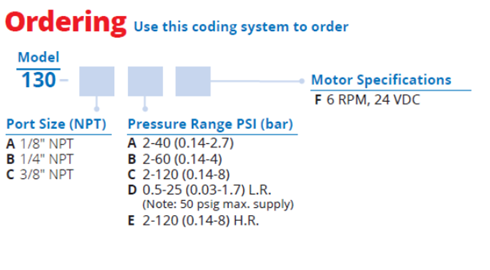

A variety of motor voltages, pressure change rates, pressure
output ranges and ports sizes are available
•Compact size

Operation
When no electrical power is supplied the regulator maintains
a precise set point despite variable supply pressure
conditions and flow rates. When power is applied to the
motor the regulator pressure output changes at approximately
a constant rate until power is removed.

Applications
The Motorized Type-100M is well suited for a variety of
applications. It can be used in a centrally controlled system,
or in areas not easily accessible to the operator such as
ventilation systems. It can be incorporated into open or
closed loop process control systems and may be used with
programmable controllers.
