康气通ControlAir Type 250 锁定式空气继动器图纸资料说明:

TYPE250-AA、TYPE250-BA、TYPE250-AS、TYPE250-BS

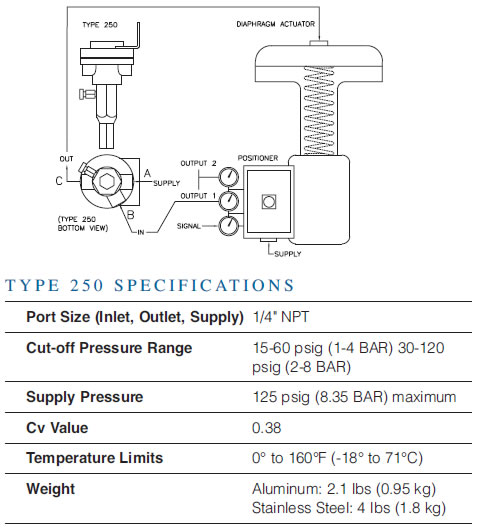

Type 250 Lock-up Air Relay Reliability for fail in place applications The ControlAir Type 250 Lockup Air Relay is a reliable unit for fail in place applications of control valves when air supply drops below acceptable pressure levels. Valve or damper position is maintained by capturing air pressure inside the diaphragm chamber (or piston cylinder) of the actuator, when the supply pressure falls below the desired set value.F E A T U R E S •Two Pressure Ranges Available 15-60 psig (1-4 BAR) or 30-120 psig (2-8 BAR) •Manual Relief Valve Allows system bleed down •Corrosion-Resistant Construction •Aluminum or 304 Stainless Steel Material Option •Mounting Bracket Standard for Ease of Installation•No Leakage in Lock-up PositionThe Type-250 Lock-up Air Relay is designed so that when the supply air pressure falls below a set value (cut-off point) the unit traps the air pressure in the diaphragm chamber of the actuator. The cut-off set point is set to a desired value by compressing the spring adjusting screw. The cut-off set point is adjustable and is generally set at a higher value than required for operation of the control valve. If the control pressure is 3-15 psig (0.2-1.0 BAR), the cut-off set point could be set at 20 psig (1.35 BAR), for example.C U T - O F F S E T T I N G Cut-off set point value has been factory adjusted. Should it be required to re-adjust the set point, it can be made either while the unit is connected to the system or separately on the test bench. Inlet supply air and the outlet pressure gauge should be available to re-adjust. To adjust the cut-off set point, remove the cap and adjust the spring adjusting screw until desired outlet cut-off pressure is achieved. Turning the adjusting screw clock-wise will increase the cut-off setting and turning it counter-clock wise will reduce the cut-off setting. Note that the lock-up relay has a differential pressure of 2.5 psig (.17 BAR). Replace cap securely after having re-adjusted the cut-off set point. Caution: Open the Manual Relief Valve to vent the actuator diaphragm chamber when control valve handwheel (override) is operated to avoid possible damage to the actuator.
