ControlAir康气通Type 350SS360-SS370-SS不锈钢过滤调压阀\调压阀\过滤器图纸资料说明:Type350/360/370SS Stainless Steel Regulators and Filters

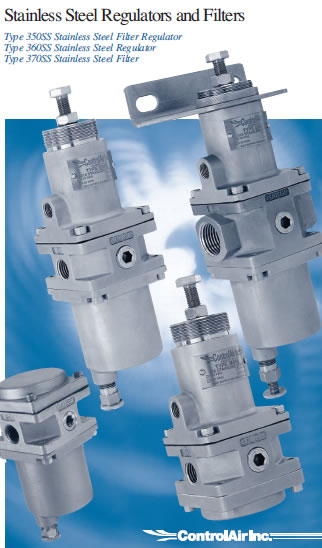

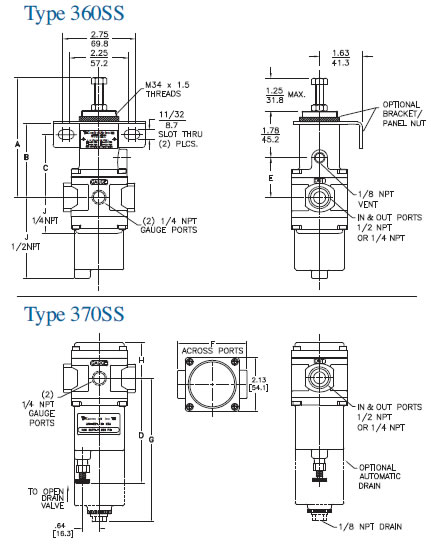

Series Type 350SS Stainless Steel Filter Regulator Type 360SS Stainless Steel Regulator Type 370SS Stainless Steel Filter |
The Type 350/360/370SS series of stainless steel regulators, filter regulators and filters are designed to stand up to the harshest environments while providing highly accurate pressure regulation. Proven 316 stainless steel housing and filter assemblies along with fluorocarbon elastomers make the 350/360/370SS compatible with sour gas and adaptable to off shore environments. These quality instruments are economical to buy as well as operate,and provide extremely stable and repeatable control of gas pressure. Oversized valving helps the units achieve high flow rates with minimal pressure drop. |
Features •All 316 Stainless Steel Construction Ideal for sour gas and/or corrosive environments •NACE Compliant Meets NACE #MR-0175 material requirement for sulfide stress cracking •1/4" NPT and 1/2" NPT Ported Versions •Autodrain Option •Low Temperature Option•High Flow Capacity •Tapped Exhaust Port Permits remote venting of hazardous gases •Minimal Air Consumption Low cost of ownership |
|
|
|
