ControlAir康气通 Type 550X 电气转换器（I/P, E/P）图纸资料说明：

举例型号Type550,TYPE550-ACA,TYPE550-ADA,TYPE550-AEA,TYPE550-AGA,TYPE550-AHA,TYPE550-EGA,TYPE550-EHA,TYPE550AIA,TYPE550-AJA,TYPE550-AKA,TYPE550-EIA,TYPE550-EJA,TYPE550-EKA,TYPE550-ACD,TYPE550-ACD

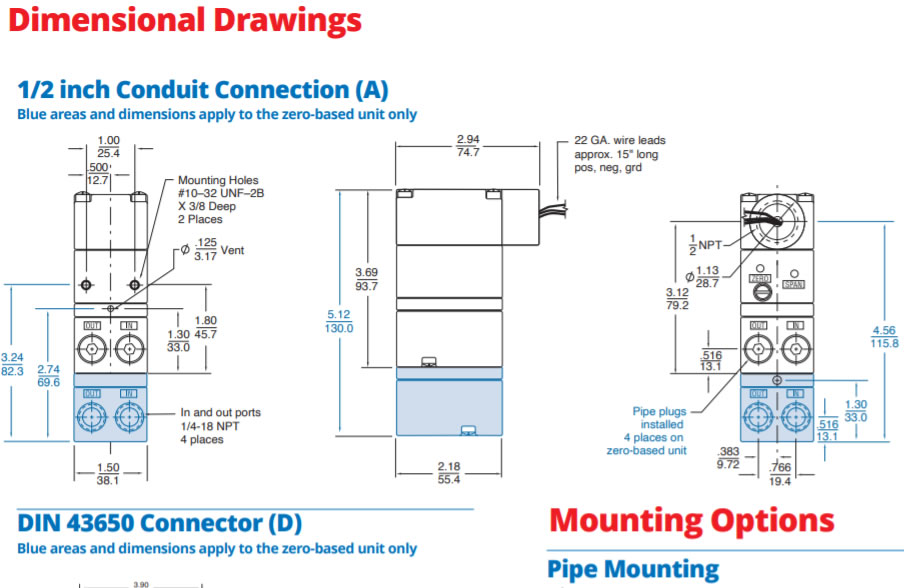

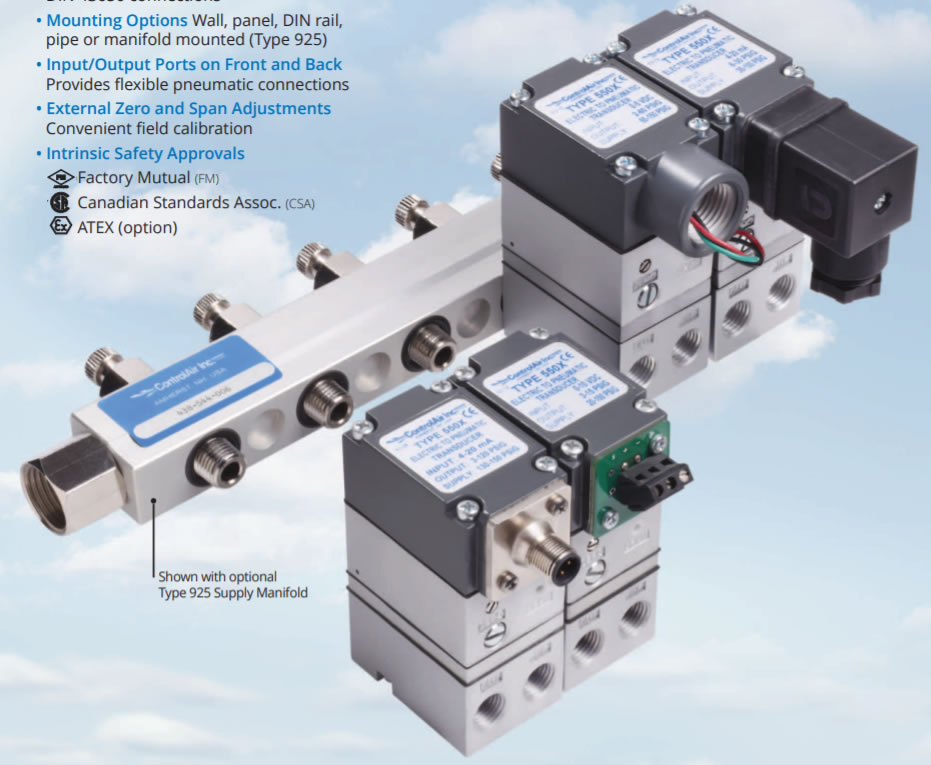

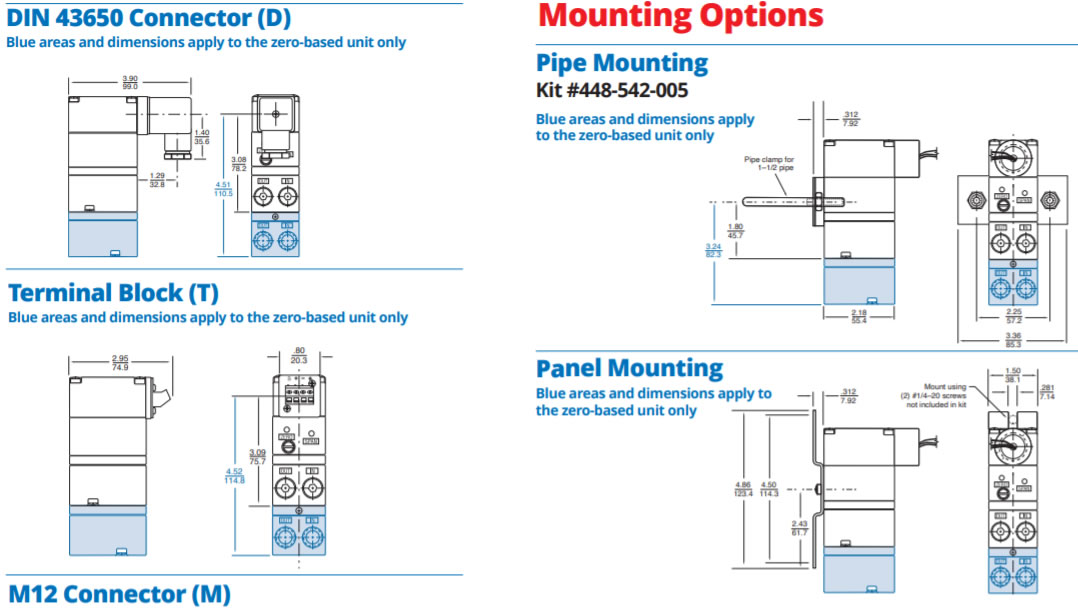

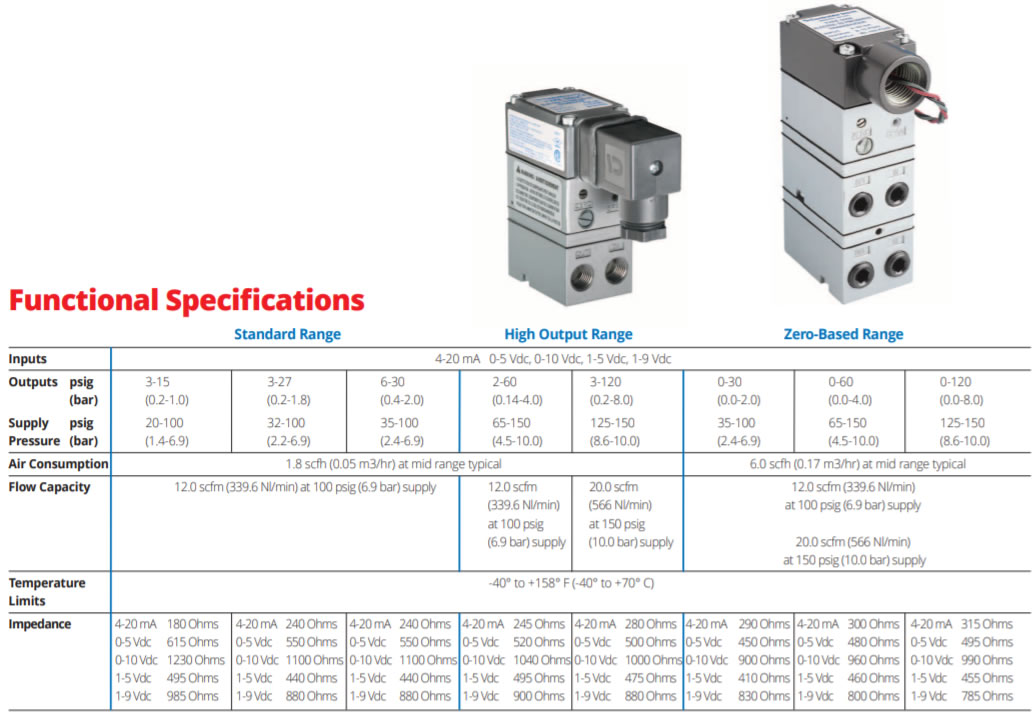

Functional Specifications Standard Range High Output Range Zero-Based Range Inputs 4-20 mA 0-5 Vdc, 0-10 Vdc, 1-5 Vdc, 1-9 Vdc Outputs psig 3-15 3-27 6-30 2-60 3-120 0-30 0-60 0-120 (bar) (0.2-1.0) (0.2-1.8) (0.4-2.0) (0.14-4.0) (0.2-8.0) (0.0-2.0) (0.0-4.0) (0.0-8.0) Supply psig 20-100 32-100 35-100 65-150 125-150 35-100 65-150 125-150 Pressure (bar) (1.4-6.9) (2.2-6.9) (2.4-6.9) (4.5-10.0) (8.6-10.0) (2.4-6.9) (4.5-10.0) (8.6-10.0) Air Consumption 1.8 scfh (0.05 m3/hr) at mid range typical 6.0 scfh (0.17 m3/hr) at mid range typical Flow Capacity 12.0 scfm (339.6 Nl/min) at 100 psig (6.9 bar) supply 12.0 scfm 20.0 scfm 12.0 scfm (339.6 Nl/min) (339.6 Nl/min) (566 Nl/min) at 100 psig (6.9 bar) supply at 100 psig at 150 psig (6.9 bar) supply (10.0 bar) supply 20.0 scfm (566 Nl/min) at 150 psig (10.0 bar) supply Temperature -40° to +158° F (-40° to +70° C) Limits Impedance 4-20 mA 180 Ohms 4-20 mA 240 Ohms 4-20 mA 240 Ohms 4-20 mA 245 Ohms 4-20 mA 280 Ohms 4-20 mA 290 Ohms 4-20 mA 300 Ohms 4-20 mA 315 Ohms 0-5 Vdc 615 Ohms 0-5 Vdc 550 Ohms 0-5 Vdc 550 Ohms 0-5 Vdc 520 Ohms 0-5 Vdc 500 Ohms 0-5 Vdc 450 Ohms 0-5 Vdc 480 Ohms 0-5 Vdc 495 Ohms 0-10 Vdc 1230 Ohms 0-10 Vdc 1100 Ohms 0-10 Vdc 1100 Ohms 0-10 Vdc 1040 Ohms 0-10 Vdc 1000 Ohms 0-10 Vdc 900 Ohms 0-10 Vdc 960 Ohms 0-10 Vdc 990 Ohms 1-5 Vdc 495 Ohms 1-5 Vdc 440 Ohms 1-5 Vdc 440 Ohms 1-5 Vdc 495 Ohms 1-5 Vdc 475 Ohms 1-5 Vdc 410 Ohms 1-5 Vdc 460 Ohms 1-5 Vdc 455 Ohms 1-9 Vdc 985 Ohms 1-9 Vdc 880 Ohms 1-9 Vdc 880 Ohms 1-9 Vdc 900 Ohms 1-9 Vdc 880 Ohms 1-9 Vdc 830 Ohms 1-9 Vdc 800 Ohms 1-9 Vdc 785 Ohms Performance Specifications Linearity <0.5% of span <1.0% of span & Repeatability Supply Pressure <0.1% of span per 1.0 psig (0.07 bar) <0.4% of span per 1.0 psig (0.07 bar) <0.02% of span per 1.0 psig (0.07 bar) Sensitivity RFI/EMI Effect Less than .5% of span change in output pressure per En 61000-4-3:1998, Amendment 1, Performance Criterion A
