康气通Controlair lnc

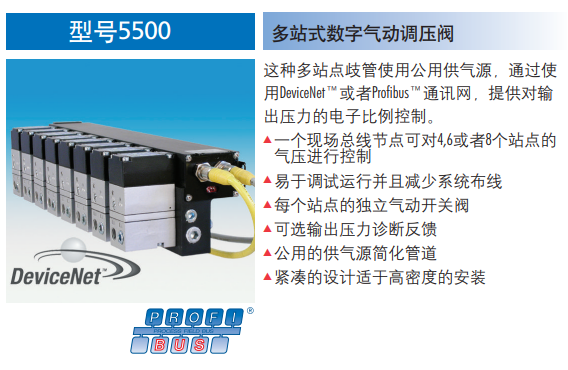

Type5500 多站式数字气动调压阀图纸资料说明:

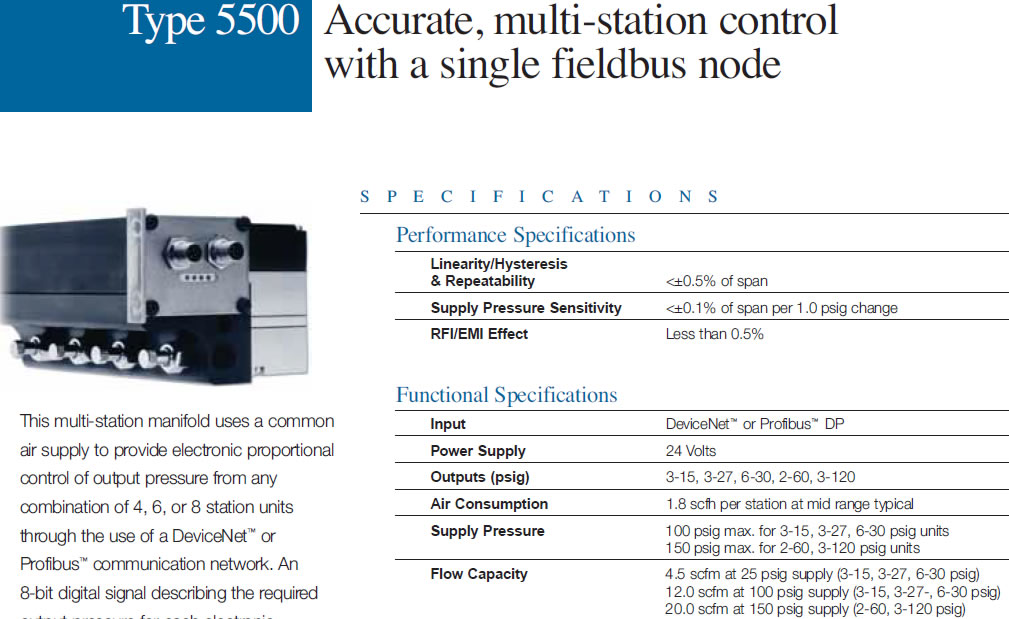

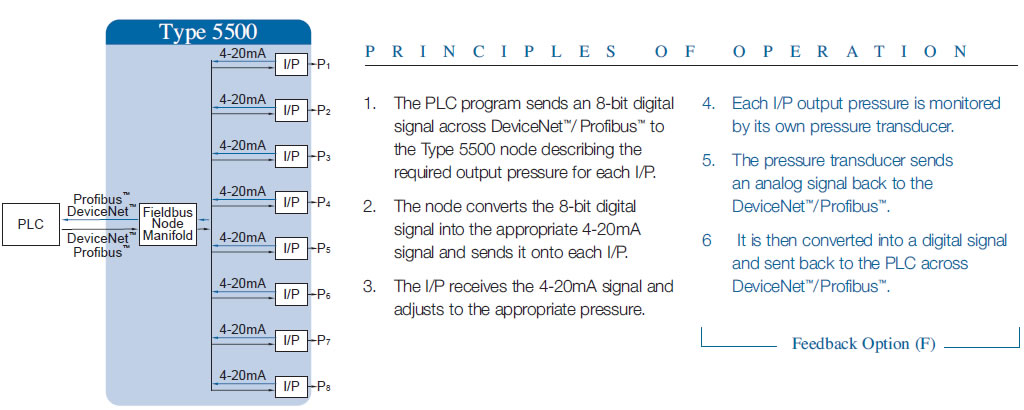

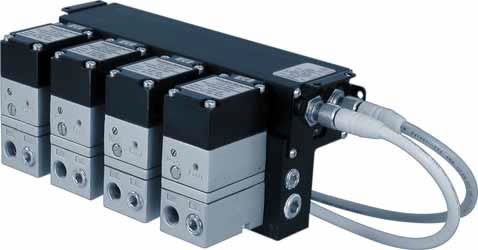

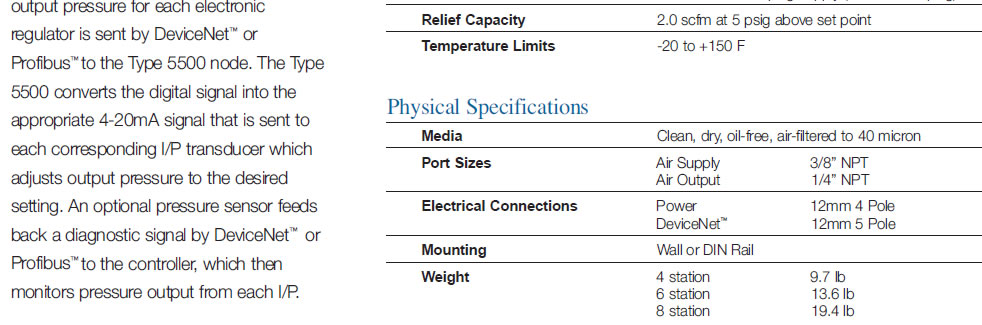

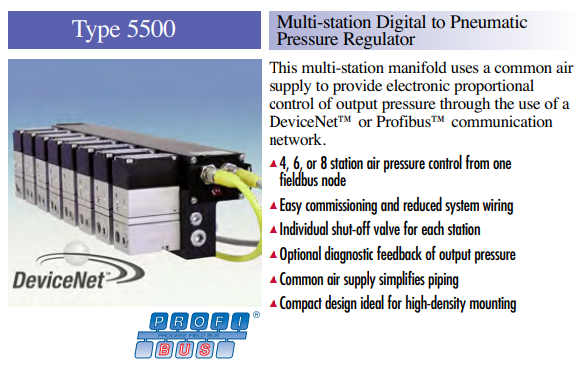

Type 5500 Multi-station, Digital-to-Pneumatic Pressure Regulator 4, 6, or 8 station air pressure control from a common air supply with DeviceNet™ or Profibus™Manifold Features •One Node Providing Multi-Station Control 4, 6, or 8 station air pressure control off of one fieldbus node.• Individual Pneumatic Shutoff Valves Allows adding, changing or removing electronic pressure regulators without shutting off the main air supply. Service one station while the others remain in operation. • Reduced System Wiring Only one power cord and one fieldbus connection required for up to 8 pressure outputs. •Feedback Option Pressure sensor monitors regulator output and sends electronic signal back to PLC across DeviceNet™ or Profibus™ DP network. • Common Air Supply Eliminates additional plumbing of individual supply lines. Regulator Features • Compact Size Great for high-density mounting. • Easy Access External Zero and Span Adjustments Convenient calibration. •High Flow Capacity Internal volume booster.

Type-5500DBC,Type-5500DBD,Type-5500DBE,Type-5500DBG,Type-5500DBH,Type-5500DCC,Type-5500DCD,Type-5500DCD,Type-5500DCE,Type-5500DCG,

Type-5500DCH,Type-5500DDC,Type-5500DDD,Type-5500DDE,Type-5500DDG,Type-5500DDH,Type-5500PBC,Type-5500PBD,Type-5500PBD,Type-5500PBE,

Type-5500PBG,Type-5500PBH,Type-5500PCC,Type-5500PCD,Type-5500PCE,Type-5500PCG,Type-5500PCH,Type-5500PDC,Type-5500PDD,Type-5500PDE,

Type-5500PDG,Type-5500PDH
