康气通 ControlAir Type 595电气转换器 图纸资料说明:

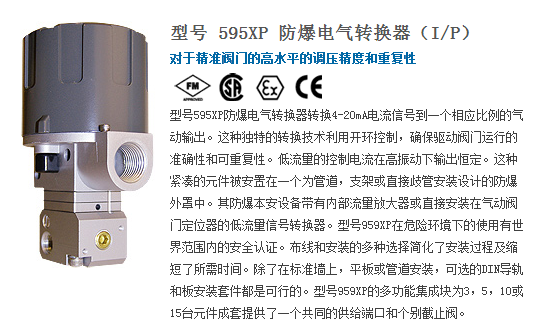

Type 595XP Explosion-Proof I/P Transducer High level of regulation accuracy and repeatability for the operation of actuated valves,The Type-595XPExplosionproof, I/P (current to pressure) transducer converts a 4–20mA electrical current signal to a proportionally linear pneumatic output. The unique conversion technology utilizing open loop control provides a high level of accuracy and repeatability for the operation of actuated valves. A low mass control circuit provides consistent output in high vibration applications. This compact unit is housed in an explosion proof enclosure that is designed for pipe, bracket or direct manifold mounting. This explosion-proof and intrinsically safe field device is available with an integral volume booster or as a low-flow signal converter that directly mounts to a pneumatic valve positioner. The Type-595XP has worldwide agency approvals for use in hazardous areas.Features •Compact Design Small size and low weight •Worldwide Safety Approvals Factory Mutual (FM), Canadian Standards Association (CSA) and ATEX •Vibration and Position Insensitive Unit can be mounted in any plane and is stable in high vibration environments •Low power consumption Minimize loop load

TYPE 595XP防爆型电气转换器595-AC，595-AE
