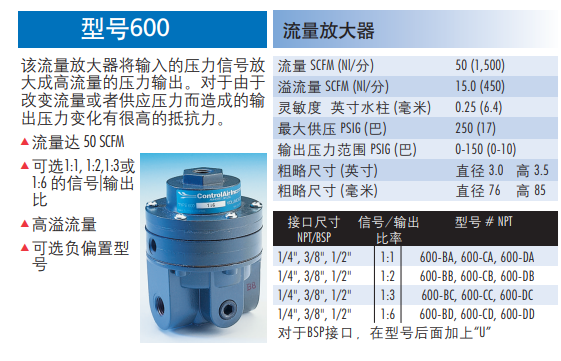

ControlAir康气通 Type 600 流量气动放大器选型目录:PRINCIPLE OF OPERATION When pressure is introduced through the signal port of the Type-600, a
downward force on the upper diaphragm area is created. This force is balanced by the output pressure acting against the lower control diaphragm area. The ratio of signal pressure to output pressure is determined by the ratio of the effective areas of the upper and lower diaphragms. If signal pressure is increased above the output pressure there is a net downward force on the diaphragm assembly causing the supply valve to open. Output pressure increases until equalibrium is achieved. When signal pressure is decreased below the output pressure, the diaphragm assembly rises, allowing output air to exhaust through the vent on the side of the relay.Warranty
ControlAir, Inc. products are warranted to be free from defects in materials and workmanship for a period of eighteen months from the date of sale, provided said
products are used according to ControlAir, Inc. recommended usages. ControlAir, Inc.'s liability is limited to the repair, purchase price refund, or replacement in kind, at ControlAir, Inc.'s sole option, of any products proved defective. ControlAir, Inc. reserves the right to discontinue manufacture of any products or change products materials, designs or specifications without notice. Note: ControlAir does not assume responsibility for the selection,use, or maintenance of any product. Responsibility for the proper selection, use, and maintenance of any ControlAir product remains solely with the purchaser and end user.
